Vandewilly Silva

Integrating HPE GreenLake webhooks with Splunk

June 24, 2025

Overview

This guide shows you how to connect HPE GreenLake webhooks with Splunk. Splunk is a data platform that collects, indexes, and analyzes machine-generated data to provide insights for various purposes, including security monitoring, IT operations, and business analytics. When the two are connected, you will be able to see your HPE GreenLake events through Splunk for improved data monitoring and analysis.

What you’ll learn

How to set up Splunk to receive data from HPE GreenLake
How to handle HPE GreenLake's security requirements
How to build a helper app that makes everything work together
How to test and monitor your setup

Overview of Splunk HTTP Event Collector (HEC)

The HTTP Event Collector (HEC) is a Splunk feature that lets you send data and application events to a Splunk deployment over the HTTP and Secure HTTP (HTTPS) protocols. HEC uses a token-based authentication model. You can generate a token and then configure a logging library or HTTP client with the token to send data to HEC in a specific format.

Key features of HEC

Token-based authentication: Each token has a unique value, which is a 128-bit number that is represented as a 32-character globally unique identifier (GUID)
Secure communication: Supports both HTTP and HTTPS protocols for data transmission
API key support: Provides secure authentication mechanisms that align perfectly with HPE GreenLake's security requirements
Flexible data formats: Accepts both JSON-formatted events and raw text data

Overview of HPE GreenLake webhooks

HPE GreenLake webhooks facilitate automated, real-time communication between HPE GreenLake cloud services and an external service of your choosing. For example, a webhook could notify your IT Operation Management platform when a new audit log is created, or when subscriptions are about to expire. A getting started guide to HPE GreenLake webhooks is available here.

HPE GreenLake webhook security features:

HPE GreenLake implements robust security measures to ensure webhook authenticity:

Challenge Request Validation: After registering a webhook, a verification challenge is sent to the destination (the webhook URL). The event type is hpe.greenlake.events.v1beta1.webhooks.verification. The challenge request includes a unique, random string generated by the server that is sent in the body as a payload.
HMAC SHA-256 Signature Verification: HPE GreenLake webhooks use a verification challenge process to ensure that webhook connections are legitimate and secure. HPE GreenLake secures webhook notifications through HMAC (Hash-based Message Authentication Code) with SHA-256, a cryptographic hashing algorithm.
Shared Secret Management: The platform supports dual secret rotation for zero-downtime security updates.

Challenge Request Example:

{
  "specversion" : "1.0",
  "type" : "hpe.greenlake.events.v1beta1.webhooks.verification",
  "source" : "//global.api.greenlake.hpe.com/events",
  "id" : "C234-1234-1234",
  "time" : "2018-04-05T17:31:00Z",
  "datacontenttype" : "application/json",
  "data" : {
    "challengeRequest" : "<TOKEN>"
  }
}

Challenges and solutions

The primary challenge in integrating HPE GreenLake webhooks with Splunk HEC lies in the webhook verification process. The destination must read the value from the challengeRequest field and create an HMAC SHA-256 hash, using the webhook secret as salt and the challengeRequest value as a string to hash. When successful, the destination responds with a JSON object with the format {"verification": "CREATED_HASH"} and a HTTP 200 OK status.

A challenge

Splunk's HEC endpoint is designed for data ingestion and doesn't natively support the challenge-response mechanism required by HPE GreenLake webhooks. HEC expects to receive event data directly and cannot handle the initial verification handshake.

The solution

This is where Splunk's custom REST endpoints capability becomes invaluable. A custom REST endpoint is a developer-defined endpoint and associated handler that lets you build out the Splunk REST API to meet your specific needs. We can create a custom endpoint handler that:

Intercepts the initial challenge request from HPE GreenLake
Validates the challenge using HMAC SHA-256
Responds appropriately to complete the verification
Forwards validated event data to HEC for ingestion

Custom REST endpoints in Splunk

Splunk's custom REST endpoints provide powerful extensibility for scenarios exactly like ours. You use a custom endpoint to add a special feature that Splunk doesn't have built-in, like, in our case, handling the unique secret handshake from HPE GreenLake.

Key benefits of our integration:

Flexible request handling: Can process both challenge requests and event data
Custom logic implementation: Handler code implements HPE GreenLake's specific validation requirements
Centralized management: Provides a single endpoint for webhook management

Where to configure the endpoint handler: Splunk Enterprise vs Splunk Cloud

Splunk Enterprise is the self-hosted version that an organization deploys and manages on its own infrastructure, either on-premises (on-prem) or in a private cloud.

Splunk Cloud Platform is the Software as a Service (SaaS) offering, where the Splunk platform is hosted, managed, and maintained by Splunk.

For Splunk Enterprise

You can install and configure the endpoint handler directly on your Splunk Enterprise instance by placing it in the etc/apps/ directory and following the steps in this guide. Splunk Enterprise supports custom REST endpoints out of the box.

For Splunk Cloud

Splunk Cloud has extra security controls, so you might need to take additional steps to allow your helper to communicate with the Splunk REST API.

Generate an Splunk REST API key

In order to use the custom REST endpoint in Splunk, you need to get an API key which HPE GreenLake will use to authenticate against Splunk when initially setting up the webhook and sending events. You can use the following cURL command to generate a key.

curl -k https://your-splunk-instance:8089/services/auth/login \
     --data-urlencode username=YOUR_USERNAME \
     --data-urlencode 'password=YOUR_PASSWORD’

The response will be:

<response>
  <sessionKey>YOUR_SESSION_KEY</sessionKey>
  <messages>
    <msg code=""></msg>
  </messages>
</response>

Sample Python handler

Let's create a custom REST endpoint handler in Python to handle the HPE GreenLake webhook validation and forwards events to Splunk HEC, once validated.

Directory structure

splunk_hpe_webhook_app/
├── bin/
│   └── hpe_webhook_handler.py
├── default/
│   ├── restmap.conf
│   └── web.conf
└── metadata/
└── default.meta

Python handler (bin/hpe_webhook_handler.py)

import os
import sys
import json
import hmac
import hashlib
import urllib.request
import urllib.parse
from splunk.rest import BaseRestHandler
class HPEWebhookHandler(BaseRestHandler):
    def __init__(self, command_line, command_arg):
        super(HPEWebhookHandler, self).__init__(command_line, command_arg)
        # Configure your HEC endpoint and token
        self.hec_url = "<https://your-splunk-instance:8088/services/collector/event>"
        self.hec_token = "YOUR_HEC_TOKEN_HERE"
        self.webhook_secret = "YOUR_WEBHOOK_SECRET_HERE"
    def handle_POST(self):
        """Handle POST requests from HPE GreenLake webhooks"""
        try:
            # Parse the incoming request body
            request_body = json.loads(self.request['payload'])
            event_type = request_body.get('type', '')
            # Check if this is a verification challenge
            if event_type == 'hpe.greenlake.events.v1beta1.webhooks.verification':
                return self._handle_challenge(request_body)
            else:
                # Validate signature for regular events
                if self._validate_signature():
                    return self._forward_to_hec(request_body)
                else:
                    return self._return_error("Invalid signature", 401)
        except Exception as e:
            return self._return_error(f"Error processing request: {str(e)}", 500)
    def _handle_challenge(self, request_body):
        """Handle HPE GreenLake webhook verification challenge"""
        try:
            # Extract challenge request token
            challenge_request = request_body['data']['challengeRequest']
            # Create HMAC SHA-256 hash
            hmac_hash = hmac.new(
                key=self.webhook_secret.encode('utf-8'),
                msg=challenge_request.encode('utf-8'),
                digestmod=hashlib.sha256
            )
            # Create verification response
            verification_response = {
                "verification": hmac_hash.hexdigest()
            }
            # Return successful verification
            self.response.setHeader('content-type', 'application/json')
            self.response.write(json.dumps(verification_response))
            return
        except Exception as e:
            return self._return_error(f"Challenge validation failed: {str(e)}", 400)
    def _validate_signature(self):
        """Validate HMAC signature for regular webhook events"""
        try:
            # Get signature from headers
            signature_header = self.request.get('headers', {}).get('hpe-webhook-signature', '')
            if not signature_header.startswith('sha256='):
                return False
            expected_signature = signature_header[7:]  # Remove 'sha256=' prefix
            # Calculate expected signature
            payload = self.request['payload']
            calculated_signature = hmac.new(
                key=self.webhook_secret.encode('utf-8'),
                msg=payload.encode('utf-8'),
                digestmod=hashlib.sha256
            ).hexdigest()
            # Compare signatures
            return hmac.compare_digest(expected_signature, calculated_signature)
        except Exception:
            return False
    def _forward_to_hec(self, event_data):
        """Forward validated event data to Splunk HEC"""
        try:
            # Prepare HEC request
            hec_data = {
                "event": event_data,
                "sourcetype": "hpe:greenlake:webhook",
                "source": "hpe_greenlake",
                "index": "main"  # Configure as needed
            }
            # Create HTTP request to HEC
            req = urllib.request.Request(
                url=self.hec_url,
                data=json.dumps(hec_data).encode('utf-8'),
                headers={
                    'Authorization': f'Splunk {self.hec_token}',
                    'Content-Type': 'application/json'
                }
            )
            # Send to HEC
            with urllib.request.urlopen(req) as response:
                if response.status == 200:
                    self.response.setHeader('content-type', 'application/json')
                    self.response.write(json.dumps({"status": "success"}))
                    return
                else:
                    return self._return_error("Failed to forward to HEC", 500)
        except Exception as e:
            return self._return_error(f"HEC forwarding failed: {str(e)}", 500)
    def _return_error(self, message, status_code):
        """Return error response"""
        self.response.setStatus(status_code)
        self.response.setHeader('content-type', 'application/json')
        self.response.write(json.dumps({"error": message}))

Configuration files

default/restmap.conf

[script:hpe_webhook_handler]
match = /hpe/webhook
script = hpe_webhook_handler.py
scripttype = persist
handler = hpe_webhook_handler.HPEWebhookHandler
requireAuthentication = false
output_modes = json
passPayload = true
passHttpHeaders = true
passHttpCookies = false

default/web.conf

[expose:hpe_webhook_handler]
pattern = hpe/webhook
methods = POST`

metadata/default.meta

[restmap/hpe_webhook_handler]
export = system
[views]
export = system`

Configuring Splunk HTTP Event Collector (HEC)

You need to create an API token to use HEC via its API. You can do this from:

1. Settings > Data Inputs > HTTP Event Collector

2. Select New token. Use this token to update the Python handler script line

Data inputs settings

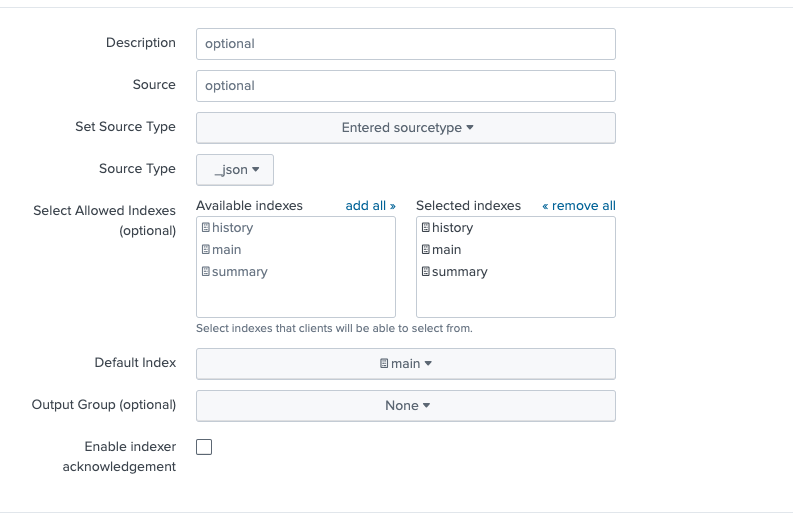

Your final configuration should look like this:

HEC final configuration

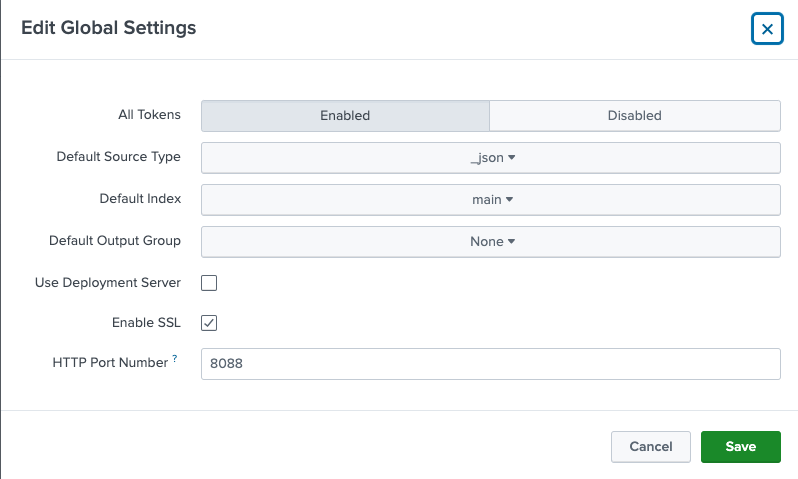

Verify your global settings so that they match the following:

Global settings

This allows you to get your HEC endpoint, which is used in the Python handler to create an incident based on the HPE GreenLake event received via the webhook. The URL of the endpoint should look like this:

<https://<splunk-host>>:8088/services/collector/event

Final integration flow

The complete integration flow works as follows:

Initial setup
- Deploy the custom Splunk endpoint handler using the above HPE webhook handler Python script.
- Make sure to set the HEC endpoint in the Python script (line 13)
- Make sure to set the Splunk HEC API token in the Python script (line 14)
- Make sure to set the HPE GreenLake webhook secret in the Python script (line 15)
- Register the webhook handler URL with HPE GreenLake:
  - URL of handler: https://your-splunk-instance:8089/servicesNS/-/your_app/hpe/webhook
  - Set the same secret key as we setup in the Python handler (line 15)
  - Use API as Authentication type and set the API key to the Splunk REST API Key generated in the section above.

Note: See this blog to learn how to register a new webhook handler in HPE GreenLake

Webhook handler verification process
- HPE GreenLake sends a verification challenge to your custom endpoint.
- The custom REST handler receives the challenge and validates it using HMAC SHA-256.
- The handler responds with the computed verification hash.
- HPE GreenLake confirms the webhook and marks it as active.
Event processing flow
- HPE GreenLake sends event data to the custom handler endpoint.
- The custom REST handler validates the HMAC signature.
- The handler forwards validated events to HEC.
- Splunk HEC ingests the data for analysis and visualization.

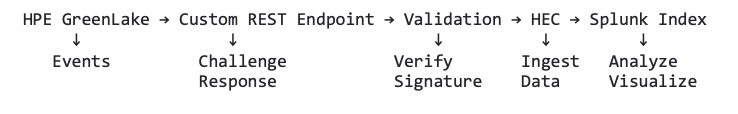

Data flow diagram

Benefits of this architecture

Security: The custom endpoint handler ensures only validated, authentic events reach your Splunk environment.

Reliability: If there are more than 20 failures in a 12-hour period, the webhook enters the critical state in HPE GreenLake. If there are no new failures in 12 hours, the webhook returns to the active state. The custom handler can implement robust error handling to maintain webhook health.

Scalability: The solution can handle multiple webhook types and route them to different HEC endpoints or indexes as needed.

Monitoring: All webhook interactions are logged within Splunk for troubleshooting and monitoring.

Testing and deployment

Testing the integration

Verify custom endpoint: Test your custom REST endpoint using curl:

`curl -X POST`[`https://your-splunk-instance:8089/servicesNS/-/your_app/hpe/webhook`](https://your-splunk-instance:8089/servicesNS/-/your_app/hpe/webhook)`\`
`-H "Content-Type: application/json" \`
`-d '{"type": "test.event", "data": {"message": "Hello Splunk"}}'`

Webhook registration: Register your webhook with HPE GreenLake using the custom endpoint URL.
Challenge validation: Monitor Splunk logs to ensure the challenge request is handled correctly.
Event flow testing: Trigger test events from HPE GreenLake and verify they appear in your Splunk index.

Conclusion

Integrating HPE GreenLake webhooks with Splunk via HTTP Event Collector presents unique challenges due to the webhook verification requirements, but Splunk's custom REST endpoints capabilities provide an elegant solution. Such integration offers several key benefits:

Enhanced security: The custom REST endpoint handler ensures that only validated, authentic events from HPE GreenLake reach your Splunk environment, maintaining the security standards required by both platforms.

Seamless event flow: Once configured, events flow automatically from HPE GreenLake to Splunk, enabling real-time monitoring and analysis of your cloud infrastructure.

Extensible architecture: The custom REST handler can be extended to support multiple webhook types, different routing logic, and additional validation mechanisms as your requirements evolve.

Whether you're monitoring subscription changes, or audit events, this integration ensures that your HPE GreenLake data becomes a valuable part of your Splunk analytics ecosystem, empowering your organization with comprehensive, real-time insights into your cloud infrastructure.
